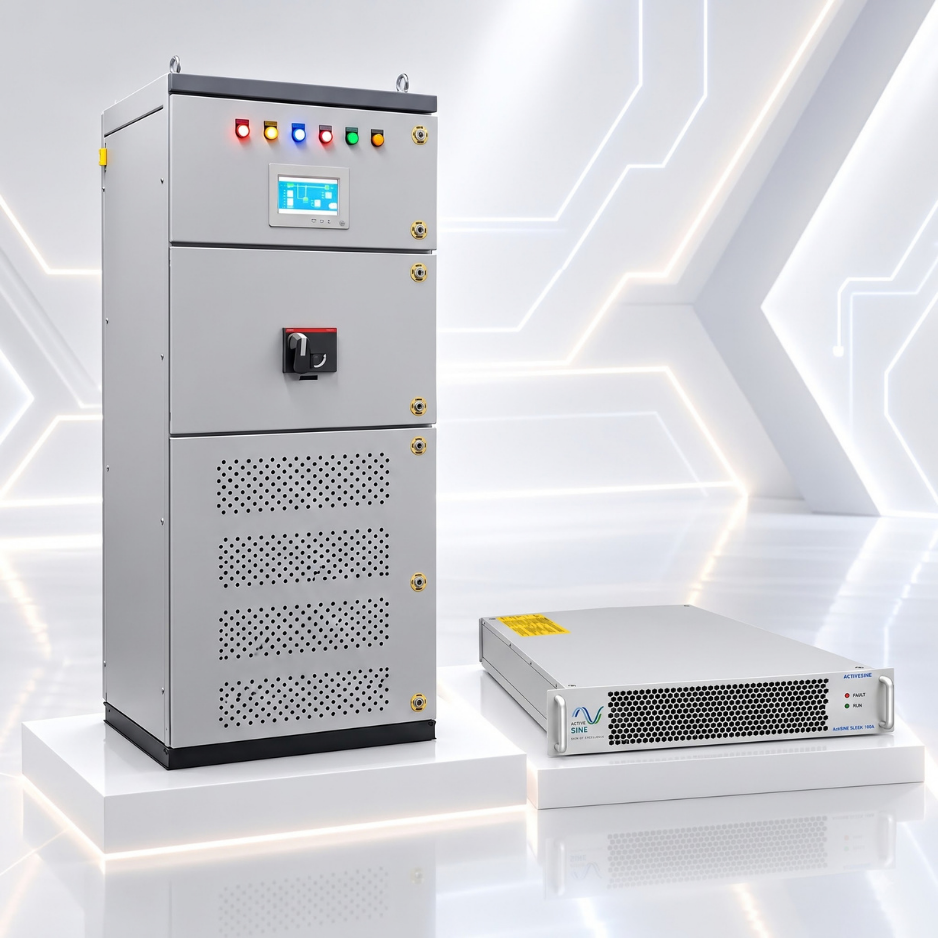

Hybrid Power Quality Solutions
Integrated Solutions for Multiple Power Quality Challenges
Activesine Hybrid Power Quality Solutions combine different compensation technologies (AHF, SVG, and APFC) to address multiple electrical requirements within a single, cohesive, high-performance system. The configuration is customized according to the application's unique harmonic, reactive power, and dynamic profile.
AHF + SVG • SVG + APFC • AHF + SVG + APFC
AHF + SVG Hybrid Solution
Combined Harmonic Mitigation & Dynamic Reactive Compensation
Combines the active harmonic mitigation capabilities of Active Harmonic Filters (AHF) with the ultra-fast stepless reactive power compensation of Static VAR Generators (SVG). This configuration dynamically suppresses harmonic distortions up to the 50th order while simultaneously maintaining near-unity power factor without any capacitor banks.

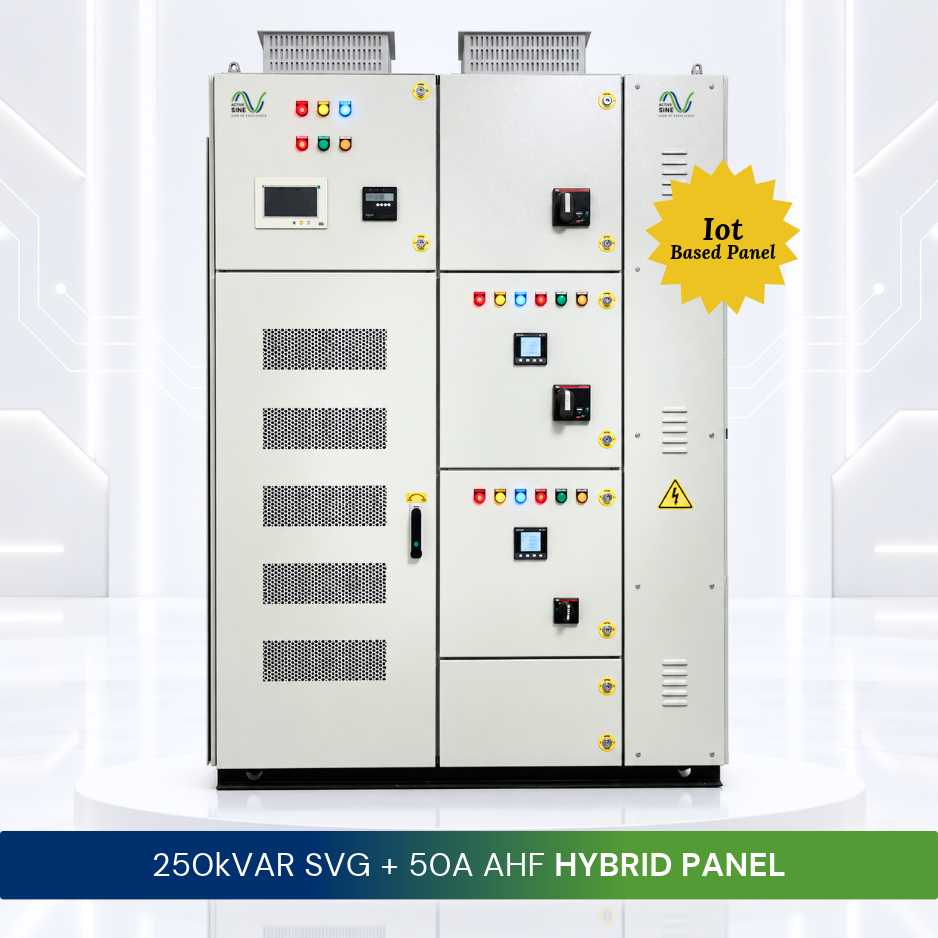

SVG + APFC Hybrid Solution
Dynamic Electronic + Stepped Conventional Reactive Compensation
An intelligent, cost-optimized blend of electronic Static VAR Generation (SVG) and traditional detuned APFC capacitor stages. The SVG handles rapid load fluctuations and fine stepless PF regulation, while the APFC stages supply base reactive power, significantly lowering overall project capital expenditure.
AHF + SVG + APFC Total Hybrid Solution
All-in-One Comprehensive Power Quality Management
The ultimate power quality system combining AHF for high-order harmonic filtering, SVG for fast sub-cycle dynamic VAR control, and detuned APFC banks for bulk reactive power support. Master controller coordination ensures optimum efficiency, reliability, and IEEE 519 compliance.
Unsure Which Hybrid Architecture Suits Your Plant?
Let our technical team analyze your load profile and harmonic spectrum to design the most cost-efficient hybrid solution.
